Hurong (Ningbo) Wheels Co., Ltd. is one of the leading manufacturers and suppliers of jeep wrangler off road wheels in China. We are committed to providing high quality customized service and OEM service to global clients. Please rest assured to wholesale bulk high-grade jeep wrangler off road wheels from our factory.
Key Features
Color – Fully Polished (complemented by yellow beadlock hardware).
True Beadlock System –
A heavy-duty outer beadlock ring mechanically clamps the tire bead to the rim, so drivers can air down to single-digit pressures for maximum traction on rock trails-without the risk of debeading.
01
Aggressive Deep-Dish Stance –
With an extreme -43mm negative offset (ET-43) and a 10-inch wide barrel, this wheel pushes the stance well beyond the fenders. The result is an ultra-wide track that improves lateral stability on steep climbs and provides ample clearance for oversized mud-terrain rubber.
02
Precision Fit for Jeep TJ –
CNC-machined to exact factory specs with a 5×114.3 (5×4.5″) bolt pattern and 71.5mm center bore, these wheels deliver a hub-centric, bolt-on fit for the 2005 Jeep Wrangler (TJ), as well as earlier YJ and Cherokee XJ models-no adapters, no guesswork.
03
950 kg Load Rating –
Off-road driving puts enormous stress on wheels. That's why each one is rigorously tested to a massive 950 kg (2,094 lbs) maximum load capacity, giving you full confidence even on fully armored, winch-equipped overland builds.
04
High-Polish Finish with Custom Hardware –
A brilliant mirror-like polish on the face and outer ring delivers that timeless off-road shine, while custom yellow high-tensile beadlock bolts add an aggressive, high-contrast accent right out of the box.
05
Product Description

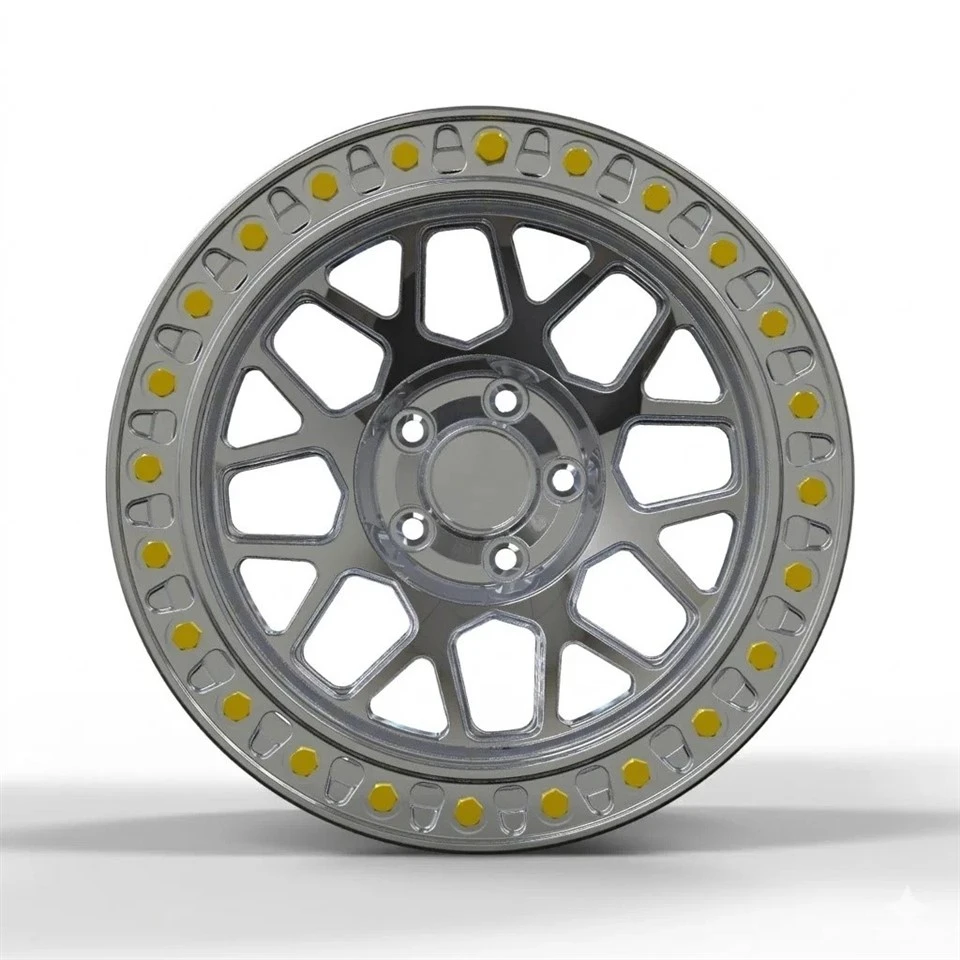

Conquer the toughest terrain with our custom 17×10 true beadlock off-road wheels, precision-engineered for Jeep Wrangler off road wheels. Built for hardcore rock crawlers, professional 4×4 outfitters, and premium aftermarket distributors, these wheels combine uncompromising trail performance with a stunning polished finish that turns heads on and off the trail.
For serious off-roaders, standard wheels become a weak link when you air down for grip. Our functional beadlock ring eliminates that risk by mechanically clamping the tire bead to the rim, letting drivers safely drop to single-digit pressures without worrying about debeading.
The wide 17×10 footprint and aggressive -43mm offset give lifted TJs a commanding, wide-track stance-essential for clearing 35-inch and larger mud-terrain tires. To withstand the punishing impacts of trail riding, each wheel is engineered to a massive 950 kg (2,094 lbs) load rating. And with a brilliant high-polish finish accented by distinctive yellow hardware, these wheels demand attention whether you're crawling over boulders or parked at the show.
As your direct factory manufacturing partner, we provide B2B distributors with scalable access to the premium off-road aftermarket. Whether you need ready-to-ship inventory for the classic 5×114.3 Jeep fitment or full OEM/ODM capabilities-including custom offsets, modern 5×127 (JK/JL) bolt patterns, or unique beadlock ring colors-our advanced production lines deliver precision engineering and highly competitive wholesale margins.
one-stop solution
professional team
high quality
Specifications
|
Specification |
Standard Configuration (as shown) |
Customization Options (OEM/ODM) |
|
Vehicle Fitment |
2005 Jeep Wrangler (TJ) |
Also compatible with Cherokee XJ, Ford Ranger, Tacoma |
|
Construction |
Monoblock with functional beadlock ring |
Simulated beadlock or standard non-beadlock available |
|
Size |
17″ × 10.0″ |
Custom diameters from 15″ to 22″ & variable widths |
|
Bolt Pattern (PCD) |
5×114.3 (5×4.5″) |
Custom CNC drilling (e.g., 5×127, 6×139.7) |
|
Center Bore (CB) |
71.5 mm |
Custom hub-centric machining |
|
Offset (ET) |
-43 mm |
Fully customizable offsets for specific lift kits |
|
Max Load Rating |
950 kg per wheel |
Upgraded structural ratings for heavier builds |
|
Wheel Finish |
High-polish |
Matte black, bronze, gunmetal, custom paint |
|
Beadlock Hardware |
Yellow high-tensile bolts |
Stainless steel, black, titanium, red hardware options |
|
Center Cap |
Blank (no logo) |
Custom CNC-engraved or 3D floating caps |
|
Business Model |
B2B wholesale / factory direct |
Full OEM & ODM services worldwide |
Product Highlight
|
All-Weather Finish Stability |
Maintains physical properties in extreme conditions from -40°C to 120°C. |
|
Aggressive Visual Stance |
Complements lowered suspensions for a perfect stance-culture aesthetic. |
FAQ
What is your warranty and after-sales policy
year warranty on forged wheels (non-human damage). Send photos/videos of issue and solution (replacement/refund) within 48h. Fully covered by Alibaba Trade Assurance.
What payment methods do you accept? How is transaction secured?
T/T, L/C, Alibaba Trade Assurance. We highly recommend Trade Assurance: funds held by Alibaba until you confirm product quality. Zero-risk transaction.
Do forged wheels help with brake cooling?
Yes. Forged wheels have better thermal conductivity, and spoke designs are typically more open, allowing air to flow and dissipate brake heat.
Do Electric Vehicles (EVs) have special requirements for forged wheels?
Since EVs are heavier and deliver instant torque, they require wheels with higher load ratings and superior dynamic balance.
